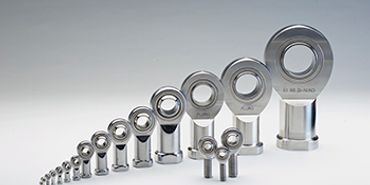

Rod Ends | ||
Series K | ||
Standard | Especially suited for axial loads | GI / GA |
Heavy Duty | Especially suited for high speed applications | GIS / GAS |
Extra Heavy Duty | Especially suitable for high pressure and tension loads | GIXS / GAXS |
Stainless | For use in corrosive environments | GIRS / GARS |
Maintenance Free | For use at dynamic loads | GISW / GASW |
Maintenance Free | For use at high pressure and tension loads | GIXSW / GAXSW |
Maintenance Free | For use in applications involving minimum axial loads and limited oscillating movements | GIOW / GAOW |
Stainless, Maintenance Free | For use in high dynamic pressure and tension loads in corrosive environements | GIRSW / GARSW |
Steel on Steel | High axial load in one direction only. To be used only with limited oscillating movements | GIO / GAO |
Sealed Version | Sealed Rod Ends Series K | G..-2RS |
Series E | ||
Steel on Steel | For use at high multidirectional loads and limited fitting dimensions | EI / EA |
Stainless, Maintenance Free | For use at high unidirectional loads, in corrosive environments and limited fitting dimentions | EI..D-NIRO / EA..D-NIRO |
Maintenance Free | For use at high unidirectional loads and limited fitting dimensions | EI..D / EA..D |
Seals | Rod End (Series E) with seals | E -2RS |

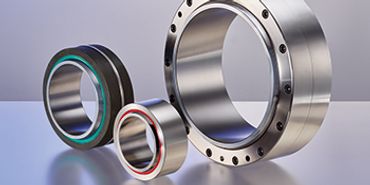

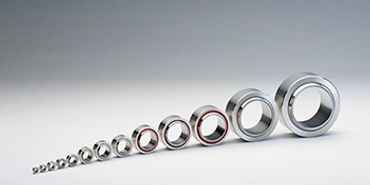

Spherical Plain Bearings | ||
Series K | ||
Standard | Especially suited for axial loads | GL |
Heavy Duty | For use at high revs | GLXS |
Stainless | For use at high revs in corrosive environments | GLRS |
Maintenance Free | For use at higher dynamic pressure and tension loads | GLXSW |
Stainless, Maintenance Free | For use at higher dynamic pressure and tension loads in corrosive environments | GLRSW |
Heavy Duty | For use at high revs | GXS |
Maintenance Free | For use at high pressure and dynamic loads | GXSW |
Series E | ||
Steel on Steel | For use with high multidirectional loads | GE..E-2RS |
Maintenance Free | For use at high unidirectional loads | GE..EC-2RS |
Stainless, Maintenance Free | For use at high directional loads in corrosive environments | GE..EC-NIRO |
Steel on Steel | For use with high multidirectional loads | GE..HO-2RS |
Others | ||
Steel on Steel | Spherical Plain Bearings with wider ball | GE..LO |
Steel on Steel | For use with higher pivoting angle | GE..FO-2RS |
Maintenance Free | Higher pivoting angle through wider ball | GE..FW-2RS |
Steel on Steel | Angular Contact Spherical Plain Bearings | GE..SX |
Maintenance Free | Angular Contact Spherical Plain Bearings | GE..SW |
Steel on Steel | Spherical Plain Thrust Bearings | GE..AX |
Maintenance Free | Spherical Plain Thrust Bearings | GE..AW |

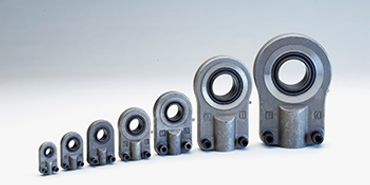

Hydraulic Rod Ends | |
Steel / Steel | |
Rod Ends with short thread, particular suited for hydraulic cylinders. Spherical Plain Bearings, regreasable, fixed with snap rings. For use with shortest relay distances and maximum stroke utilization. | FPR..N |
Rod Ends identical with FPR...N, in addition fastened by hexagon socket head cap screws to DIN 912-8.8. Spherical Plain Bearings, regreasable, fixed with snap rings. For use with shortest relay distances and maximum stroke utilization. | FPR..U |
Rod Ends, fastened by hexagon socket head cap screw to DIN 912-8.8. Spherical Plain Bearings, regreasable, fixed through caulking on both sides. For use in standard hydraulic cylinders 160 bar to ISO 6020/2. | FPR..S |
Rod Ends Cetop, recommendation RP 58H for standard hydraulic cylinders, fastened by hexagon socket head cap screws to DIN 912-8.8. Spherical Plain Bearings, regreasable, fixed with snap rings. Mounting dimensions to DIN 24333-24336 and ISO 6020/1, ISO 6022 . | FPR..CE |
Rod Ends fastened by hexagon socket head cap screws to DIN 912-8.8. Spherical Plain Bearings, regreasable, fixed with snap rings. For use with double action hydraulic cylinders. | FMA..D |
Rod Ends series E to DIN ISO 12240-4, type S with circular surface for weld-on. Spherical Plain Bearings, regreasable, fixed through caulking on both sides. For weld-on to piston Rod Ends. | FS..C |
Rod Ends with rectangular surface for weld-on. Spherical Plain Bearings, regreasable, fixed with snap rings. For weld-on to cylinder bottoms. | FS..N |
